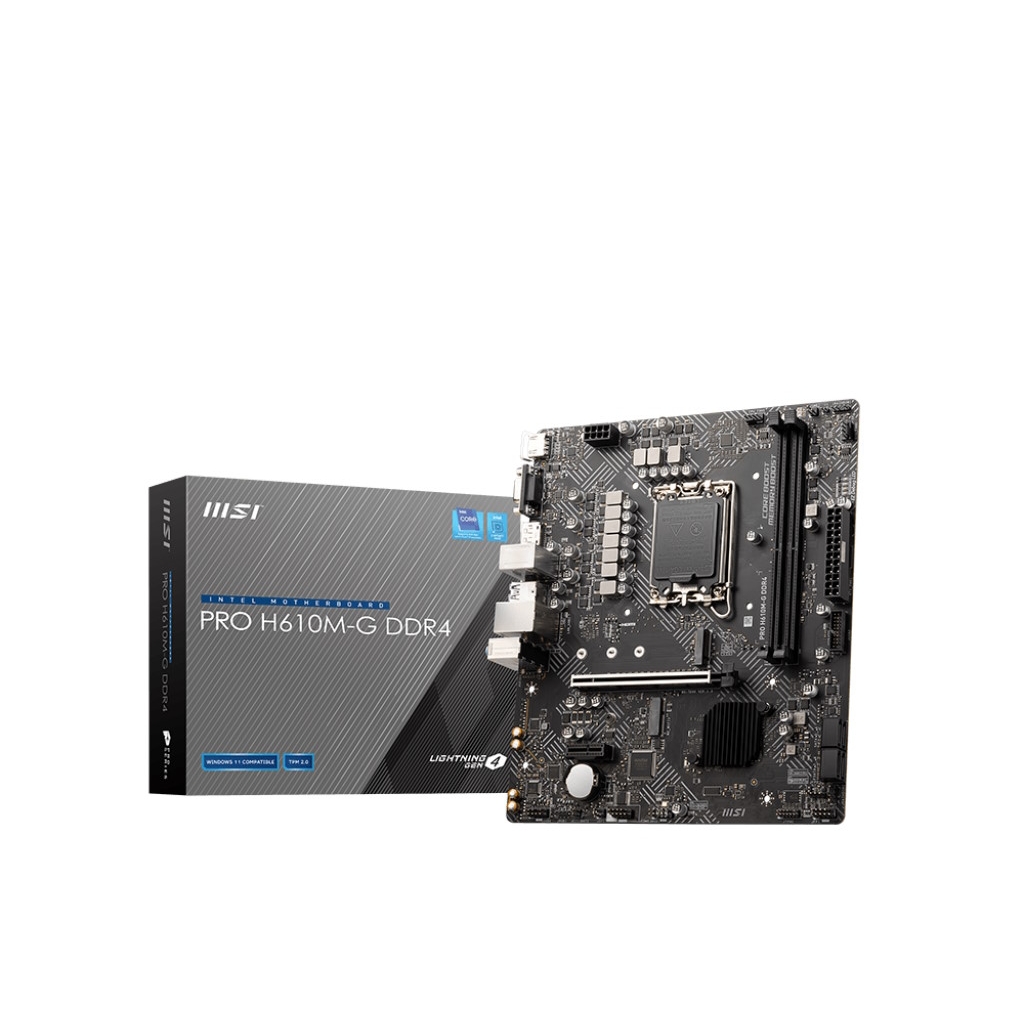

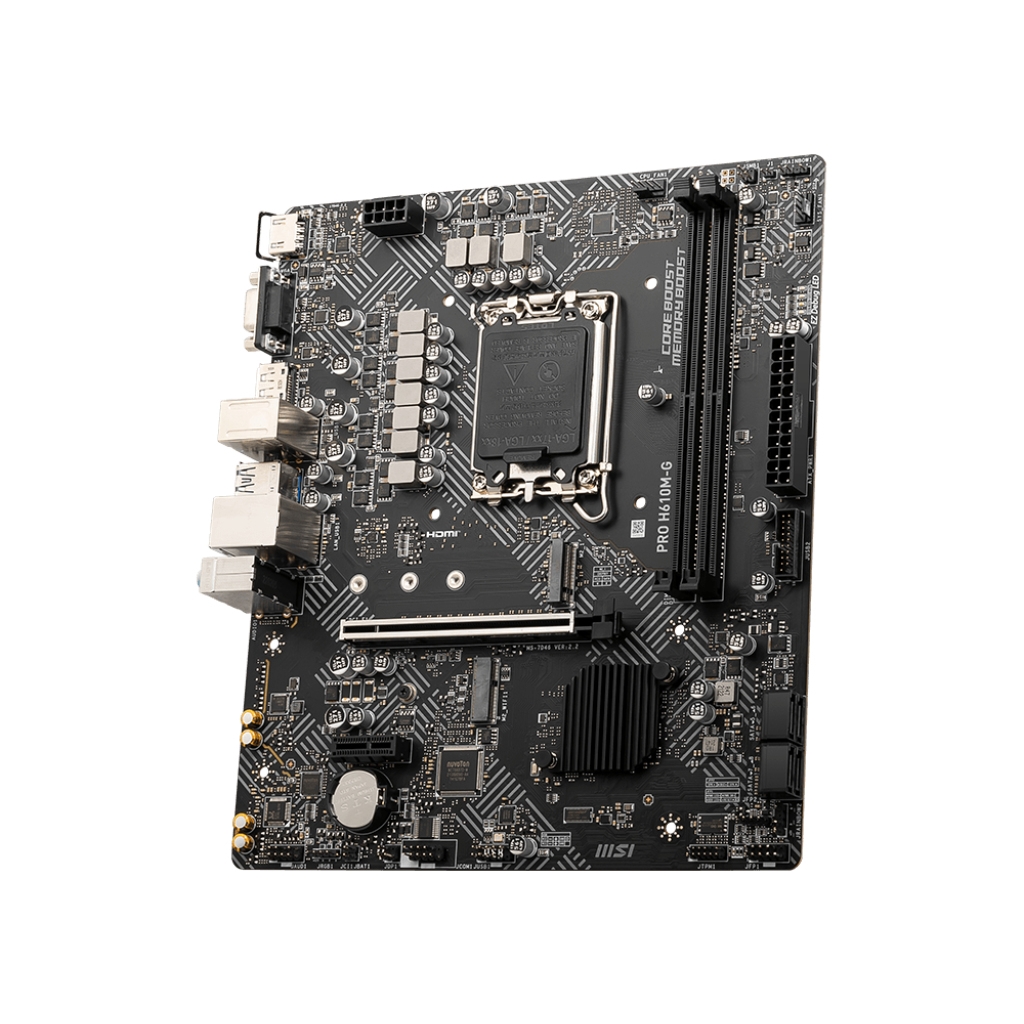

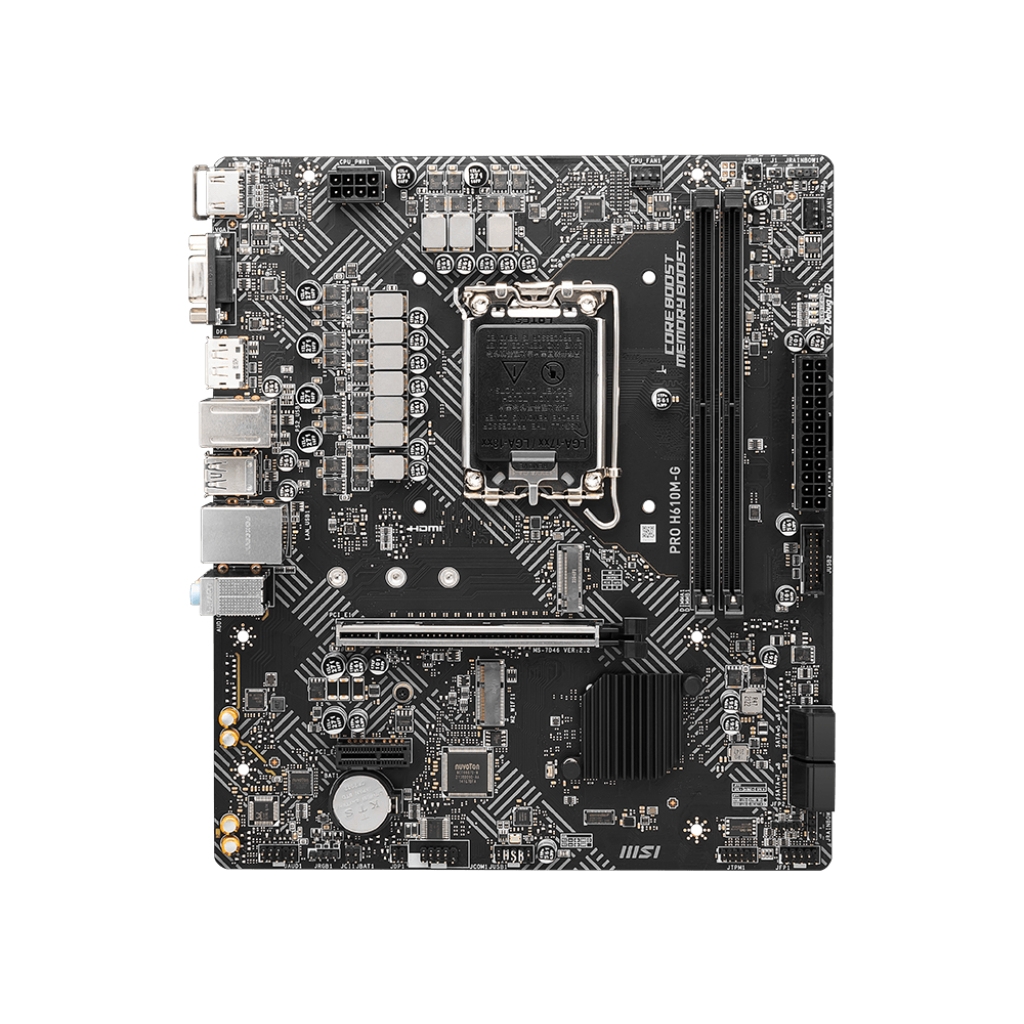

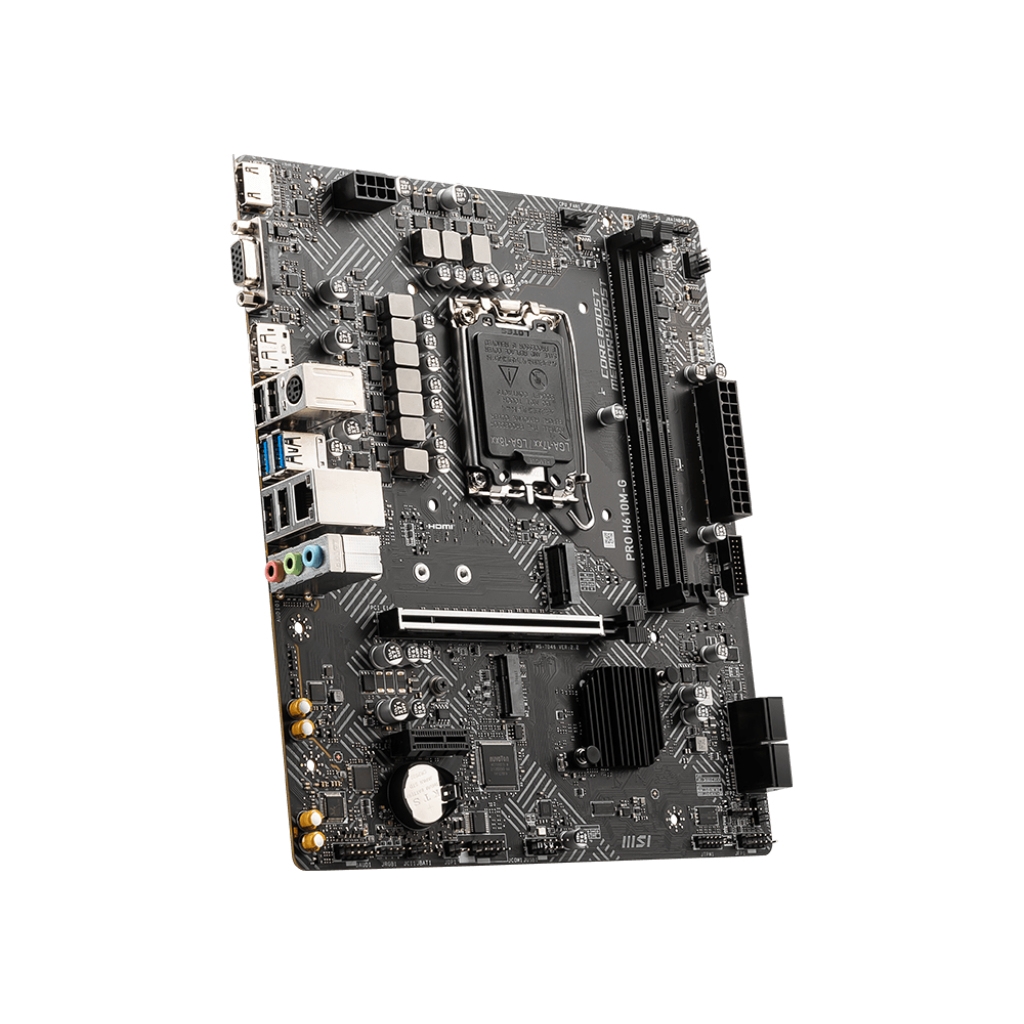

Scheda madre msi h610m-g m-atx sk1700 2*ddr5 m.2 raid vga+hdm+dp
- Produttore: MSI
- Codice Prodotto: PRO H610M-G
- EAN: 4719072942663
- Cod. 4G Shop: H610MGPRD5
Disponibili
50+ pz presso logistica esterna (4gg lav.)
Dettaglio Logistiche
-
Logistica 1100 pz4gg lav.
-
Logistica 436 pz3gg lav.
Per acquisti di quantitativi provenienti da diverse logistiche possono verificarsi variazioni di prezzo
La serie PRO aiuta gli utenti a lavorare in modo più intelligente offrendo un'esperienza efficiente e produttiva. Dotato di funzionalità stabile e assemblaggio di alta qualità, le schede madri della serie PRO forniscono non solo flussi di lavoro professionali ottimizzati, ma anche risoluzione dei problemi e longevità.
Visualizza Scheda Tecnica
CHIPSET | INTEL H610 |
---|---|
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
MEMORY | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
SLOT | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
STORAGE | 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
USB | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
LAN | Intel® I219V 1Gbps LAN controller |
INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports |
LED FEATURE | 4x EZ Debug LED |

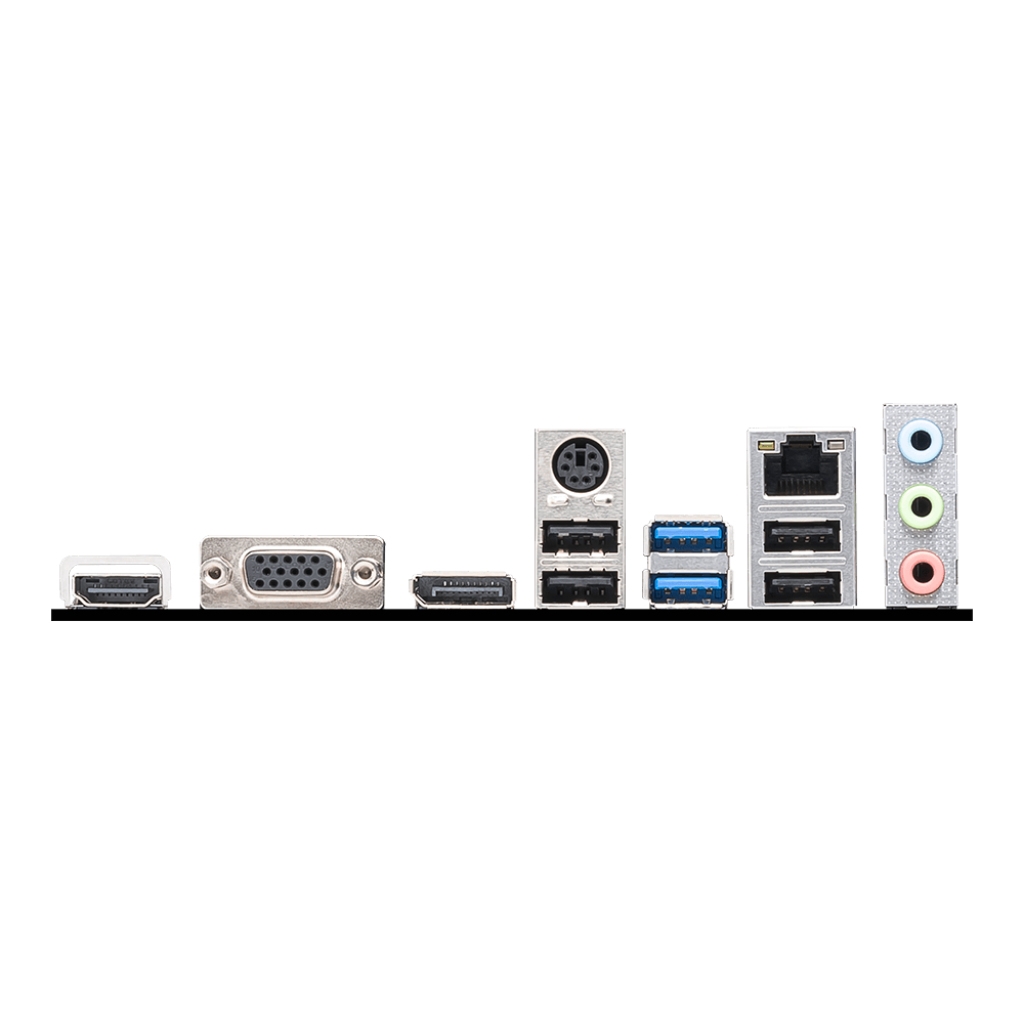

BACK PANEL PORTS | ![]()
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
