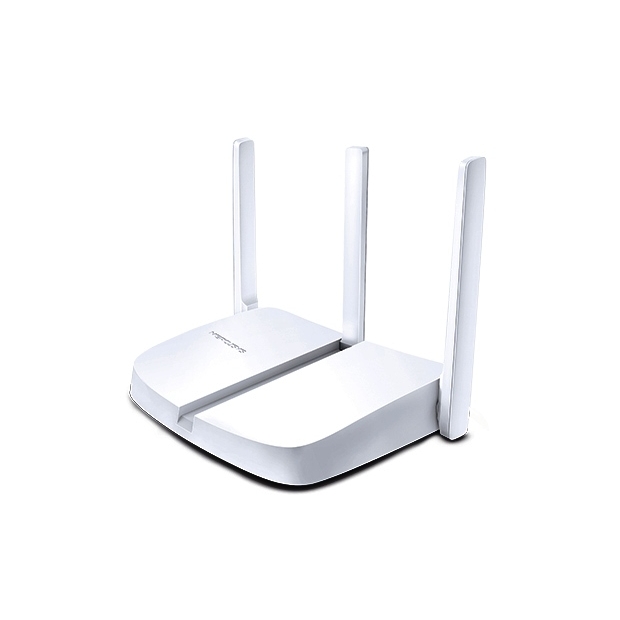

mw305r
router wireless n 300mbps
- velocità wireless fino a 300mbps, perfetto per streaming video hd, gaming online e download
- 3 antenne 5dbi per una copertura wireless stabile ed estesa
- installazione semplice - guida web intuitiva per configurare il router in pochi istanti
wireless
wireless standards
ieee 802.11n, ieee 802.11g, ieee 802.11b
frequency
2.4 - 2.4835ghz
signal rate
11n: up to 300mbps (dynamic)
11g: up to 54mbps (dynamic)
11b: up to 11mbps (dynamic)
reception sensitivity
270m: -70dbm@10% per
130m: -74dbm@10% per
108m: -74dbm@10% per
54m: -77dbm@10% per
11m: -87dbm@8% per
6m: -90dbm@10% per
1m: -98dbm@8% per
transmission power
<20dbm
wireless security
64/128/152-bit wep / wpa / wpa2,wpa-psk / wpa2-psk
wireless functions
wds bridge
software
wan type
dynamic ip/static ip/pppoe/l2tp/pptp
management
parental control
access control
local management
remote management
dhcp
server
port forwarding
virtual server, upnp, dmz
dynamic dns
dyndns、no-ip
firewall security
ip and mac address binding
protocols
ipv4
guest network
2.4ghz guest network
hardware
dimensioni (w x d x h)
169 x 116 x 35 mm
interfaces
3 10/100mbps lan ports
1 10/100mbps wan port
button
reset/wps button
external power supply
5vdc/0.6a
tipologia di antenna
3 x 5dbi fixed omni directional antennas
other
certifications
ce, rohs
package contents
300mbps wireless n router
mw305r
power adapter
quick installation guide
ethernet cable
environment
operating temperature: 0⁰c ~ 40⁰c (32⁰f ~ 104⁰f)
storage temperature: -40⁰c ~ 70⁰c (-40⁰f ~ 158⁰f)
operating humidity: 10% ~ 90%, non-condensing
storage humidity: 5% ~ 90%, non-condensing
